MADS::RexNebular::ASound Class Reference

#include <asound.h>

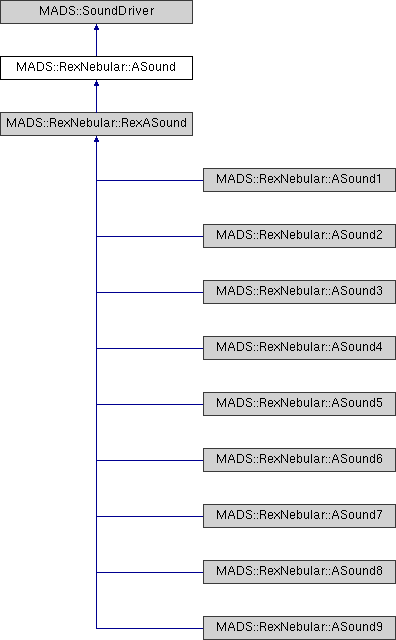

Inheritance diagram for MADS::RexNebular::ASound:

Public Member Functions
	ASound (Audio::Mixer *mixer, const Common::Path &filename, int dataOffset, int dataSize)
	~ASound () override
int	stop () override
int	poll () override
void	noise () override
int	getFrameCounter ()
void	setVolume (int volume) override
Public Member Functions inherited from MADS::SoundDriver
	SoundDriver (Audio::Mixer *mixer, const Common::Path &filename, int dataOffset, int dataSize)
virtual int	command (int commandId, int param)=0

Static Public Member Functions
static void	validate ()

Public Attributes
AdlibChannel	_channels [9]
AdlibChannel *	_activeChannelPtr
AdlibChannelData	_channelData [11]
Common::Array< AdlibSample >	_samples
AdlibSample *	_samplePtr
Common::Queue< RegisterValue >	_queue
int	_frameCounter
bool	_isDisabled
int	_noiseTicks1
int	_noiseTicks2
int	_activeChannelNumber
int	_freqMask1
int	_freqMask2
int	_freqBase1
int	_freqBase2
int	_noiseChannel1
int	_noiseChannel2
int	_noiseFreqStep1
int	_noiseFreqStep2
int	_savedNoiseTicks1
int	_savedNoiseTicks2
int	_pollResult
int	_resultFlag
byte	_nullData [2]
int	_ports [256]
bool	_stateFlag
int	_activeChannelReg
int	_outputReg
bool	_amDep
bool	_vibDep
bool	_splitPoint

Protected Member Functions
virtual void	channelCommand (byte *&pSrc, bool &updateFlag)=0
virtual void	tickCallback ()
byte *	loadData (int offset)
int	getDataOffset (byte *ptr) const
void	loadSample (int sampleIndex)
void	write (int reg, int val)
int	write2 (int state, int reg, int val)
void	flush ()
void	channelOn (int reg, int volume)
void	channelOff (int reg)
void	resultCheck ()
void	playSound (int offset)
void	playSoundAny (int offset)
void	playSoundData (byte *pData, int startingChannel=5)
bool	isSoundActive (byte *pData)
void	setFrequency (int channel, int freq)
int	getRandomNumber ()
byte *	getDataPtr (int nearPtr)
virtual int	command0 ()
int	command1 ()
int	command2 ()
int	command3 ()
int	command4 ()
int	command5 ()
int	command6 ()
int	command7 ()
int	command8 ()
int	nullCommand ()
Protected Member Functions inherited from MADS::SoundDriver
Common::MemoryReadStream	getDataStream (int offset) const

Protected Attributes
int	_chanCommandCount
int	_commandParam
Protected Attributes inherited from MADS::SoundDriver
Audio::Mixer *	_mixer
Common::Array< byte >	_soundData
Common::Mutex	_driverMutex

Detailed Description

Base class for the sound player resource files

Constructor & Destructor Documentation

ASound()

MADS::RexNebular::ASound::ASound	(	Audio::Mixer *	mixer,
		const Common::Path &	filename,
		int	dataOffset,
		int	dataSize
	)

Constructor

Parameters

mixer	Mixer
filename	Specifies the adlib sound player file to use
dataOffset	Offset in the file of the data segment
dataSize	Size of the data segment

~ASound()

MADS::RexNebular::ASound::~ASound ( )

override

Destructor

Member Function Documentation

tickCallback()

virtual void MADS::RexNebular::ASound::tickCallback ( )

inlineprotectedvirtual

Hook called once per update() frame, immediately after the disabled check and before the frame counter/channel polling. Only ASound9's driver data makes use of a recurring deferred-callback timer (the word_1949E/word_194A0/_soundPtr trio in the original disassembly); every other driver leaves this as a no-op.

loadData()

byte* MADS::RexNebular::ASound::loadData ( int  offset )

inlineprotected

Returns data for the specified offset

loadSample()

void MADS::RexNebular::ASound::loadSample ( int  sampleIndex )

protected

Loads up the specified sample

write()

void MADS::RexNebular::ASound::write ( int  reg, int  val  )

protected

Queue a byte for an Adlib register

write2()

int MADS::RexNebular::ASound::write2 ( int  state, int  reg, int  val  )

protected

Queue a byte for an Adlib register, and store it in the _ports array

flush()

void MADS::RexNebular::ASound::flush ( )

protected

Flush any pending Adlib register values to the OPL driver

channelOn()

void MADS::RexNebular::ASound::channelOn ( int  reg, int  volume  )

protected

Turn a channel on

channelOff()

void MADS::RexNebular::ASound::channelOff ( int  reg )

protected

Turn a channel off

resultCheck()

void MADS::RexNebular::ASound::resultCheck ( )

protected

Checks for whether a poll result needs to be set

playSound()

void MADS::RexNebular::ASound::playSound ( int  offset )

protected

Play the specified sound, using any free channel from 5 to 8.

Parameters

offset

Offset of sound data within sound player data segment

playSoundAny()

void MADS::RexNebular::ASound::playSoundAny ( int  offset )

inlineprotected

Play the specified sound using any channel from 0 to 8.

Parameters

offset

Offset of sound data within sound player data segment

playSoundData()

void MADS::RexNebular::ASound::playSoundData ( byte *  pData, int  startingChannel = 5  )

protected

Play the specified raw sound data

Parameters

pData	Pointer to data block containing sound data
startingChannel	Channel to start scan from

isSoundActive()

bool MADS::RexNebular::ASound::isSoundActive ( byte *  pData )

protected

Checks to see whether the given block of data is already loaded into a channel.

setFrequency()

void MADS::RexNebular::ASound::setFrequency ( int  channel, int  freq  )

protected

Sets the frequency for a given channel.

getRandomNumber()

int MADS::RexNebular::ASound::getRandomNumber ( )

protected

Returns a 16-bit random number

getDataPtr()

byte* MADS::RexNebular::ASound::getDataPtr ( int  nearPtr )

protected

Converts a 16-bit near pointer (data-segment offset) to a C++ byte pointer by searching the data cache for the matching block.

validate()

static void MADS::RexNebular::ASound::validate ( )

static

Validates the Adlib sound files

stop()

int MADS::RexNebular::ASound::stop ( )

overridevirtual

Stop all currently playing sounds

Implements MADS::SoundDriver.

poll()

int MADS::RexNebular::ASound::poll ( )

overridevirtual

Main poll method to allow sounds to progress

Implements MADS::SoundDriver.

noise()

void MADS::RexNebular::ASound::noise ( )

overridevirtual

General noise/note output

Implements MADS::SoundDriver.

getFrameCounter()

int MADS::RexNebular::ASound::getFrameCounter ( )

inline

Return the current frame counter

setVolume()

void MADS::RexNebular::ASound::setVolume ( int  volume )

overridevirtual

Set the volume

Implements MADS::SoundDriver.

---

The documentation for this class was generated from the following file:

• engines/mads/nebular/asound.h
