MADS::SoundDriver Class Reference

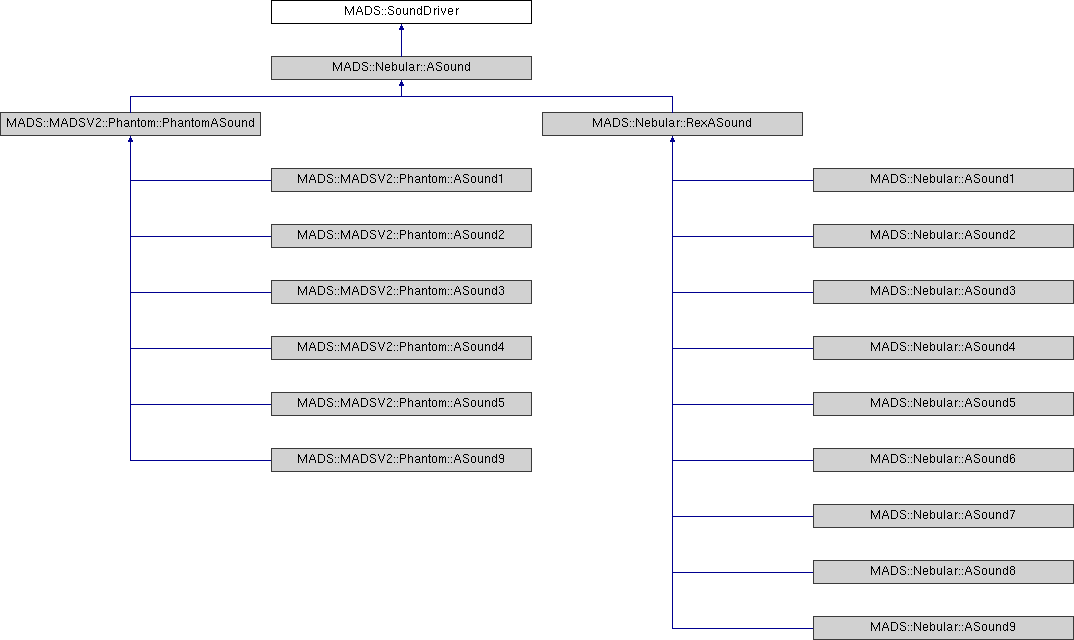

Inheritance diagram for MADS::SoundDriver:

Public Member Functions
	SoundDriver (Audio::Mixer *mixer, const Common::Path &filename, int dataOffset, int dataSize)
virtual int	command (int commandId, int param)=0
virtual int	stop ()=0
virtual int	poll ()=0
virtual void	noise ()=0
virtual void	setVolume (int volume)=0

Protected Member Functions
Common::MemoryReadStream	getDataStream (int offset) const
	SoundDriver (Audio::Mixer *mixer)

Protected Attributes
Audio::Mixer *	_mixer
Common::Array< byte >	_soundData
Common::Mutex	_driverMutex

Constructor & Destructor Documentation

SoundDriver()

MADS::SoundDriver::SoundDriver	(	Audio::Mixer *	mixer,
		const Common::Path &	filename,
		int	dataOffset,
		int	dataSize
	)

Loads a driver data block from an absolute file offset.

For DOS MZ overlays, dataOffset includes the executable header. Offsets passed to getDataStream() and stored in sequence data are relative to the loaded block instead.

Member Function Documentation

getDataStream()

Common::MemoryReadStream MADS::SoundDriver::getDataStream ( int  offset ) const

inlineprotected

Gets a stream starting at a given offset in the loaded sound data

command()

virtual int MADS::SoundDriver::command ( int  commandId, int  param  )

pure virtual

Execute a player command. Most commands represent sounds to play, but some low number commands also provide control operations.

Parameters

commandId	Player ommand to execute.
param	Optional parameter used by a few commands

Implemented in MADS::Dragonsphere::Sound::RSoundDemo9, MADS::Dragonsphere::Sound::RSoundDemo1, MADS::Dragonsphere::Sound::RSound9, MADS::Dragonsphere::Sound::RSound6, MADS::Dragonsphere::Sound::ASoundDemo9, MADS::RexNebular::Sound::RSoundDemo9, MADS::RexNebular::Sound::RSound9, MADS::Dragonsphere::Sound::ASound9, MADS::Dragonsphere::Sound::ASoundDemo1, MADS::RexNebular::Sound::RSound8, MADS::Dragonsphere::Sound::RSound5, MADS::RexNebular::Sound::ASound9, MADS::RexNebular::Sound::PSoundDemo9, MADS::RexNebular::Sound::RSound7, MADS::RexNebular::Sound::PSoundDemo1, MADS::Phantom::Sound::RSoundDemoPHA, MADS::RexNebular::Sound::RSound6, MADS::Dragonsphere::Sound::ASound6, MADS::RexNebular::Sound::PSound9, MADS::Phantom::Sound::RSound9, MADS::RexNebular::Sound::ASoundDemo9, MADS::Dragonsphere::Sound::RSound4, MADS::Phantom::Sound::ASoundDemo, MADS::RexNebular::Sound::ASound8, MADS::RexNebular::Sound::RSound5, MADS::Dragonsphere::Sound::ASound5, MADS::RexNebular::Sound::PSound8, MADS::Phantom::Sound::RSound5, MADS::Phantom::Sound::ASound9, MADS::RexNebular::Sound::ASound7, MADS::RexNebular::Sound::RSound4, MADS::RexNebular::Sound::PSound7, MADS::RexNebular::Sound::ASound6, MADS::Dragonsphere::Sound::ASound4, MADS::Phantom::Sound::ASound5, MADS::Dragonsphere::Sound::RSound3, MADS::RexNebular::Sound::PSound6, MADS::RexNebular::Sound::ASound5, MADS::Phantom::Sound::RSound4, MADS::RexNebular::Sound::RSound3, MADS::RexNebular::Sound::PSound5, MADS::Dragonsphere::Sound::ASound3, MADS::RexNebular::Sound::ASound4, MADS::Phantom::Sound::ASound4, MADS::RexNebular::Sound::PSound4, MADS::Phantom::Sound::RSound3, MADS::RexNebular::Sound::ASound3, MADS::Dragonsphere::Sound::RSound2, MADS::Phantom::Sound::ASound3, MADS::Dragonsphere::Sound::ASound2, MADS::RexNebular::Sound::PSound3, MADS::RexNebular::Sound::RSound2, MADS::RexNebular::Sound::ASound2, MADS::Dragonsphere::Sound::ASound1, MADS::Phantom::Sound::RSound2, MADS::Dragonsphere::Sound::RSound1, MADS::Phantom::Sound::ASound2, MADS::RexNebular::Sound::PSound2, MADS::RexNebular::Sound::ASoundDemo1, MADS::RexNebular::Sound::RSoundDemo1, MADS::Phantom::Sound::RSound1, MADS::RexNebular::Sound::RSound1, MADS::RexNebular::Sound::MacSoundDriver, MADS::Phantom::Sound::ASound1, MADS::Dragonsphere::Sound::DragonspherePSoundDemo, MADS::RexNebular::Sound::PSound1, MADS::RexNebular::Sound::ASound1, MADS::Dragonsphere::Sound::DragonspherePSound, MADS::Dragonsphere::Sound::GSoundDragonsphere, MADS::RexNebular::Sound::ISoundSection, MADS::Phantom::Sound::ISoundSection, and MADS::Phantom::Sound::PhantomPSound.

stop()

virtual int MADS::SoundDriver::stop ( )

pure virtual

Stop all currently playing sounds

Implemented in MADS::Dragonsphere::Sound::ASound, MADS::Dragonsphere::Sound::RSound, MADS::Phantom::Sound::RSound, MADS::Phantom::Sound::ASound, MADS::RexNebular::Sound::ASound, MADS::RexNebular::Sound::RSound, MADS::Dragonsphere::Sound::GSound, MADS::RexNebular::Sound::PSound, MADS::Dragonsphere::Sound::PSound, MADS::Phantom::Sound::PSound, MADS::Phantom::Sound::ISound, MADS::RexNebular::Sound::ISound, and MADS::RexNebular::Sound::MacSoundDriver.

poll()

virtual int MADS::SoundDriver::poll ( )

pure virtual

Main poll method to allow sounds to progress

Implemented in MADS::Dragonsphere::Sound::ASound, MADS::Dragonsphere::Sound::RSound, MADS::Phantom::Sound::RSound, MADS::Phantom::Sound::ASound, MADS::RexNebular::Sound::ASound, MADS::RexNebular::Sound::RSound, MADS::Dragonsphere::Sound::GSound, MADS::RexNebular::Sound::PSound, MADS::Dragonsphere::Sound::PSound, MADS::Phantom::Sound::PSound, MADS::Phantom::Sound::ISound, MADS::RexNebular::Sound::ISound, and MADS::RexNebular::Sound::MacSoundDriver.

noise()

virtual void MADS::SoundDriver::noise ( )

pure virtual

General noise/note output

Implemented in MADS::Dragonsphere::Sound::ASound, MADS::Dragonsphere::Sound::RSound, MADS::Phantom::Sound::RSound, MADS::Phantom::Sound::ASound, MADS::RexNebular::Sound::ASound, MADS::RexNebular::Sound::RSound, MADS::Dragonsphere::Sound::GSound, MADS::RexNebular::Sound::PSound, MADS::Dragonsphere::Sound::PSound, MADS::Phantom::Sound::PSound, MADS::Phantom::Sound::ISound, MADS::RexNebular::Sound::ISound, and MADS::RexNebular::Sound::MacSoundDriver.

setVolume()

virtual void MADS::SoundDriver::setVolume ( int  volume )

pure virtual

Set the volume

Implemented in MADS::Dragonsphere::Sound::ASound, MADS::Dragonsphere::Sound::RSound, MADS::Phantom::Sound::RSound, MADS::Phantom::Sound::ASound, MADS::RexNebular::Sound::ASound, MADS::RexNebular::Sound::RSound, MADS::Dragonsphere::Sound::GSound, MADS::RexNebular::Sound::PSound, MADS::Dragonsphere::Sound::PSound, MADS::Phantom::Sound::PSound, MADS::Phantom::Sound::ISound, MADS::RexNebular::Sound::ISound, and MADS::RexNebular::Sound::MacSoundDriver.

---

The documentation for this class was generated from the following file:

• engines/mads/core/sound_manager.h
